M12 Power L-Code connectors deliver a compact, high-performance solution for industrial power applications. As an extension of the IEC M12 standard and the PROFIBUS and PROFINET International choice for 24V power supply in PROFINET devices, these connectors are engineered for reliability and efficiency. Capable of handling up to 16A per pin, they provide four times the power of standard M12 connectors while occupying up to 40% less space than traditional 7/8" power connectors.

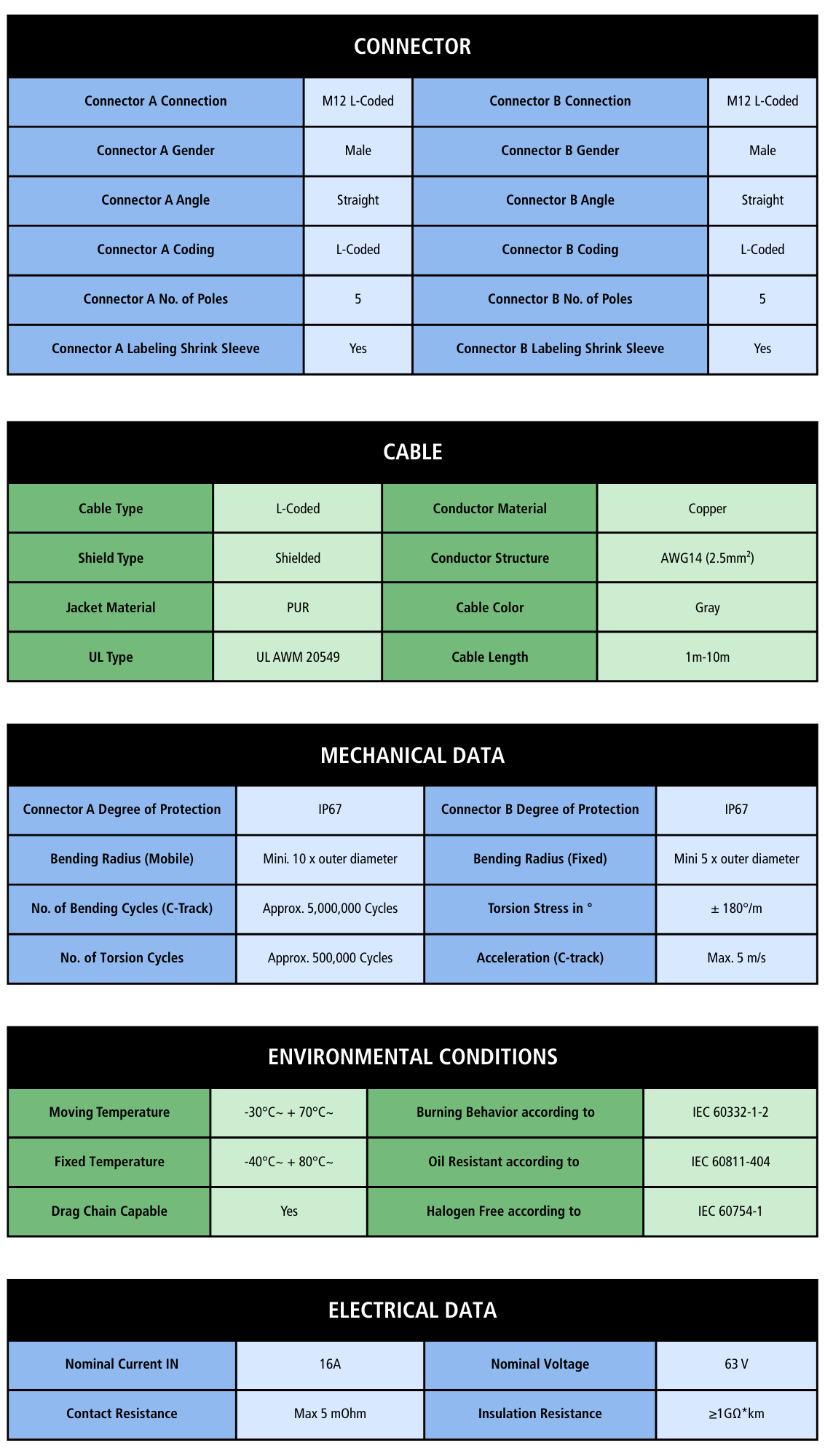

Designed for demanding environments, these assemblies feature conductor sizes from 1.5mm² to 2.5mm², supporting compact builds for high-power automation systems. With IP67 protection, they are dust-tight and resistant to temporary water immersion (up to 1 meter for 30 minutes), ensuring durability in harsh conditions. Operating at 63 V DC / 16A, they are ideal for fieldbus Ethernet I/O boxes, network devices, motors, drives, and valve applications where high current and low voltage are required.

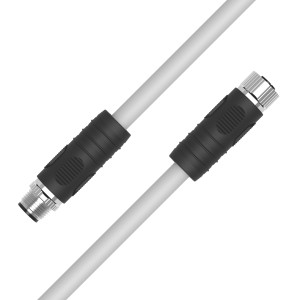

Available in both male and female configurations, Weltron® M12 Power L-Code cable assemblies deliver up to 80% more power than 7/8” connectors, making them the superior choice for modern industrial automation.
